Access control reader outdoor

✅ IP66 Metal Access Control Keypad & Proximity Card Reader – 10,000 Users

• High-security standalone access control keypad with proximity card reader

• Supports up to 10,000 users (Hardware) and 500 App users

• Multiple access modes: PIN, Card, or PIN + Card

• Compatible with EM & EM+Mifare cards

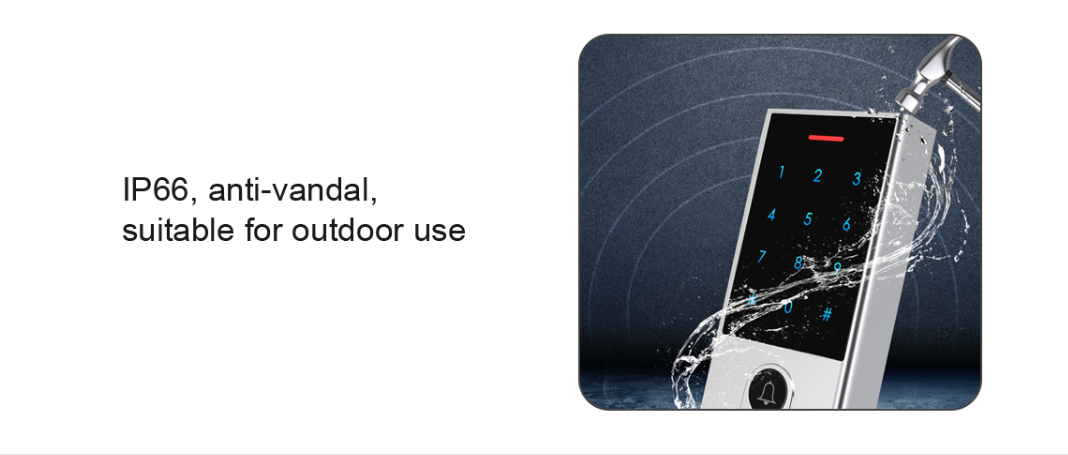

• Weatherproof IP66-rated metal body – ideal for harsh outdoor UAE conditions

• Wide voltage support: 12–18V DC

• Low power consumption (Idle ≤ 60mA / Active ≤ 150mA)

• Advanced Wiegand input & output for system integration

• Adjustable relay output time: 0–99 seconds

• 2 Amp lock output load – supports electric strikes & magnetic locks

• Designed for villas, offices, warehouses, parking entrances, labor camps & commercial buildings

• Works perfectly for door access, gate access & barrier control

• Professional installation available after site visit in Dubai & Abu Dhabi

• Ideal for new installations and replacement of old systems

📦 What’s Included (In the Box)

• Metal Access Control Keypad with Card Reader

• Built-in Controller & Relay

• Mounting Accessories

• Wiring Connector Set

• User Programming Guide

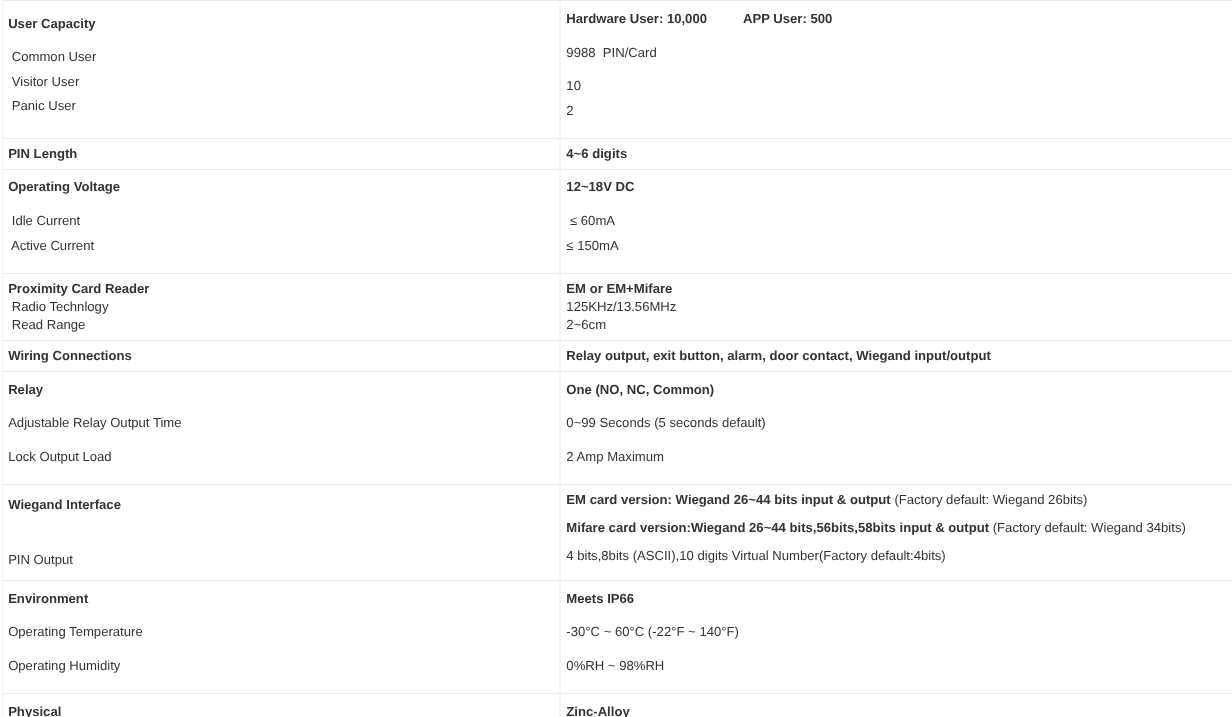

⚙️ Key Technical Specifications

• User Capacity:

  • Common Users: 9,988 (PIN/Card)

  • Visitor Users: 10

  • Panic Users: 2

• PIN Length: 4–6 digits

• Operating Voltage: 12–18V DC

• Idle Current: ≤ 60mA

• Active Current: ≤ 150mA

• Card Technology: EM / EM+Mifare (125KHz / 13.56MHz)

• Read Range: 2–6 cm

• Relay Output: 1 Relay (NO / NC / COM)

• Relay Time: 0–99 seconds (Default 5 seconds)

• Lock Output Load: Max 2A

• Wiegand Interface: 26–44 bits / 56 & 58 bits supported

• PIN Output: 4-bit, 8-bit (ASCII), 10-digit Virtual Number

• Protection Rating: IP66 Waterproof

• Operating Temperature: -30°C to +60°C

• Humidity: 0% – 98% RH

• Body Material: Zinc Alloy Metal

🏗️ Installation & Support in UAE

• On-site inspection before installation

• Professional installation available in Dubai & Abu Dhabi

• Suitable for residential, commercial & industrial projects

• Technical support for contractors, system integrators & building maintenance companies
